Overview
The installation of SQL Server Express 2017 & newer is slightly different from earlier versions.


Requirements
See Requirements Here
1. A computer/server with at least 60 GB of hard drive space available.
2. Permission to download software
3. Permission to install software on the computer/server being used.




Step 1.
Download the SQL Server 2017 Express software from the Microsoft website. Use this link "https://www.microsoft.com/en-us/download/details.aspx?id=55994" or conduct a search for SQL Server Express 2017 on a search engine of your choice.



Step 2.
Ensure the file is saved on the computer/server that will have the VersaCall software installed. Double click on the executable file to launch.
SQL2017 1.png



Step 3.
After the extraction completes you will see an installation type install screen - select Custom.
SQL2017 2.png



Step 4.
If you receive a download location screen - select the Install button.
SQL2017 3.png



Step 5.
When the installation window appears select "New Installation or add features to an existing installation".
3164 25.png



Step 6.
Select to Accept the terms click on the Next button.
3164 26.png



Step 7.
SQL Installer will run a check on the system - once it has completed select the Next button. If something is flagged as "Failed" contact VersaCall support for assistance.
SQL2017 4.png



Step 8.

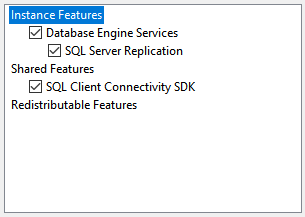

On the Features page ensure the following features are checked - select the Next button.
SQL2017 5.png



Step 9.
On the Instances page select Named Instance - click on the Next button.
3164 28.png



Step 10.
On the Service Accounts page set the SQL Server Database Engine & the SQL Server Browser to Automatic - select the Next button.
3164 29.png



Step 11.
On the Account Provisioning page select Mixed Mode - enter "SQLServer123" as the password. Select the Next button.
3164 30.png



Step 12.
The SQL Server installer will run and provide you with at status bar. Once the installation is complete you will see a Successful message. Close this window and the SQL Installer window.



Step 13.
Select the Windows Start button.



Step 14.
Find the Microsoft SQL Server 2017 folder and expand it. Select the SQL Server Configuration Manager.
3164 33.png



Step 15.
Expand the SQL Server Network Configuration - select Protocols for SQLEXPRESS.
3164 34.png



Step 16.
Right click on each Protocol and select Enable. Ensure all of the protocols are set to enabled.
3164 35.png
3164 36.png



Step 17.
On the left side of the window select SQL Server Services.
3164 37.png



Step 18.
Right click on the SQL Server (SQLEXPRESS) service and select Restart. Repeat the process for the SQL Server Browser.
3164 38.png



Step 19.
Close all open windows. Return to the Installation Page and move on Step #3. Click Here for the Installation Page.
