VT3000 - Setup Attached Light Stack - Call Station

Overview

This guide explains how to setup wired lights that are attached to a Call Station, BSC, TIM or PSM. The example shown in the guide is for a 5 color light stack attached to a Call Station. Color stack light order is Green at the top then Red, Amber, Blue and White. Green is wired to O5, Red to O1, Amber to O2, Blue to O3 and White to O4. The instructions below will also be the same for any alarms setup on a BSC, TIM or PSM.

Requirements

1. VT3000 Core Software installed and running on your system.

2. A Light Stack wired to a Call Station, BSC, TIM or PSM

3. A Call Station, BSC, TIM or PSM powered and communicating with the system.

4. A Call Station, BSC, TIM or PSM configured in the system.

Instructions - Discrete Output Setup

1. Open the VT3000 web interface – log in – select Configuration – select Devices.

•

  Configuration

•

  Devices

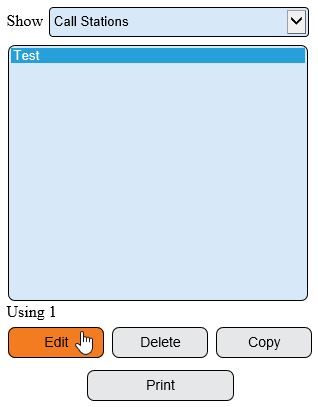

2. Select the Call Station from the list – select Edit.

•

3. Select the Discrete Outputs tab.

•

4. Select Discrete Output 1.

•

•

5. Discrete Output Properties:

•

•

    a. Description – enter a name for the output – light color.
    b. Type – 3 options:
         i. Normal – output will turn on/off when commanded.
         ii. Disabled – output will not turn on/off.
         iii. Related – output will turn on/off when another output is on/off.
    c. Inverted – output will do the opposite of normal.
    d. On Delay – number of milliseconds to elapse before the output turns on.
    e. Off Delay – number of milliseconds to elapse before the output turns off.
    f. Blink On – number of milliseconds to stay on during blink.
    g. Blink Off – number or milliseconds to stay off during blink.
    h. Direct – available when Related Type is selected. Not applicable.
    i. Inverse – available when Related Type is selected. Explained in Step 8.

6. Example - all lights excluding Green:

•

•

•

•

    a. Description – enter the light color.
    b. Type – leave this as normal.
    c. Inverted – leave this unchecked.
    d. Default State – select Off.
    e. On Delay – enter Zero.
    f. Off Delay – enter Zero.
    g. Blink On – enter 5.
    h. Blink Off – enter 5.

7. Example - Green light only:

•

    a. Description – enter Green Light.
    b. Type – select Related.
    c. Inverted – leave this unchecked.
    d. On Delay – leave this set to zero.
    e. Off Delay – leave this set to zero.
    f. Direct – leave all unchecked.
    g. Inverse – mark DO1, DO2, DO3 and DO4.

10. Select Save & Exit.

•

Instructions - Setting Up Actions

1. Select a Call Station with lights attached & set up – select Edit.

•

2. Select the Monitoring Points tab.

•

3. Select the first alarm/button so that it is highlighted.

•

•

  border]]

4. Select the Actions tab.

•

5. By default, a Call Station will have actions created:

•

    a. Set – Blink Red Light – on Set output 1/Red will blink.
    b. Acknowledge – Turn on Red Light – on Acknowledge output 1/Red will turn on.
    c. Clear – Turn off Red Light – on Clear output 1/Red will turn off.

6. Action Properties - this window will show when selecting to add or edit an action.

•

    a. State – select state of the alarm Set, Acknowledge or Clear to initiate the action.
    b. Type – 5 options.
         i. Modify Discrete Output – select an output on the device being configured.
         ii. Modify Discrete Output on Another Device – select an output on a device other than the one being configured.
         iii. Modify Discrete Input - enable or disable an input on the device.
         iv. Execute Task - used in custom configurations.
         v. Run Trigger - used in custom configurations.
    c. Action – select Turn On, Blink or Turn Off.
    d. Output – select the output/light for the action.

7. Select Save & Exit.

•
